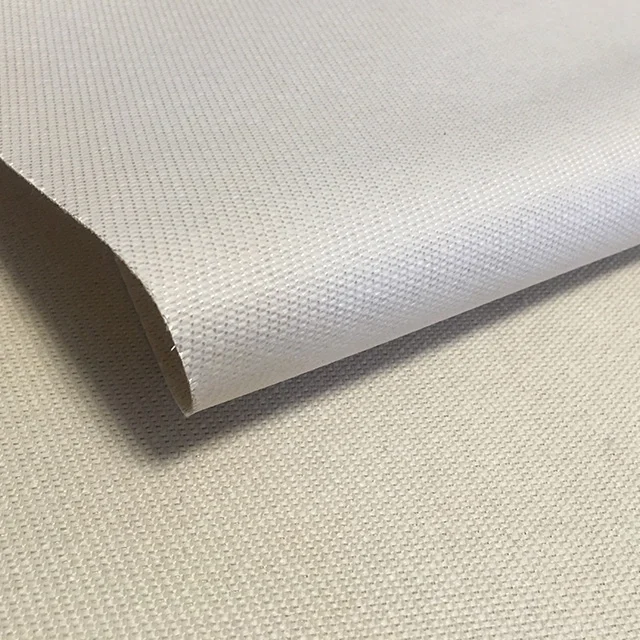

750g/m2 woven fiberglass fabric 22oz

Woven fiberglass is a kind of filter material for high temperature application. It’s made by drawing-spinning-warping-texturizing-weaving-finishing-laminating processes. Because of its excellent performance like high temperature resistance (260℃), high tensile strength, high oxygen and corrosion resistance and long service lifetime, it can be widely used in dust filtration in cement plant, power plant, carbon black plant, steel plant, incinerator, etc.

Weight: 750g/m2 (22oz)

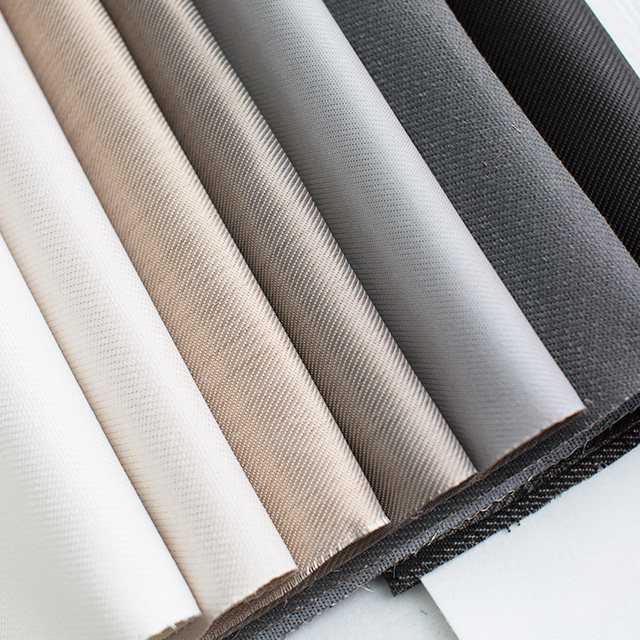

Finish: PTFE finish, Acid resistant finish, Silicone Graphite, PTFE finish

Membrane: with or without e-PTFE membrane

Regular width: 1.55m, 1.65m, 1.73m, 1.83m, or customized

Roll length: 230m/roll, or customized

Weight: 470g/m2 (14oz)

Finish: PTFE finish, Acid resistant finish, Silicone Graphite, PTFE finish

Membrane: with or without e-PTFE membrane

Regular width: 0.98m, 1m, 1.016m, 2m, 2.032m, or customized

Roll length: 300m/roll, or customized

Weight: 340g/m2 (9oz)

Finish: PTFE finish, Acid resistant finish, Silicone Graphite, PTFE finish

Membrane: with or without e-PTFE membrane

Regular width: 0.98m, 1m, 1.016m, 2m, 2.032m, or customized

Roll length: 300m/roll, or customized

Specification of woven fiberglass

Woven fiberglass feature:

1. High temperature resistance

Woven fiberglass filter cloth can be used continuously between above the acid dew point and 260°C, and the maximum temperature resistance can reach 280°C. For the burning particles and sparks generated instantly, the filter material will not burn. Glass fiber cloth is baked in an oven at 280°C for 2 hours, and the physical and chemical indicators and color basically remain unchanged, which is not available in other filter materials.

2. High strength and low elongation, stable size

The warp and weft strength of the woven glass filter fabric is more than 2000N, and it will not shrink under high temperature, almost maintain the original size, and will not affect the filtering and cleaning performance. The elongation rate of woven glass is less than 3%. During the filtration operation, the weight of the filter material plus the weight of the dust layer will not cause the filter bag to elongate, and it also greatly reduces the periodic breakage of the filter bag caused by air pressure cleaning.

3. High filtering precision

The PTFE membrane on the surface of fiberglass filter fabric are small and uniform (0.10-2.0μm), which can separate all dust larger than the diameter of the micropores, and has a very high collection efficiency for PM10 (respirable dust) and PM2.5 (respirable dust) which seriously damage human health. Therefore, the dust purification efficiency is high and stable, and it is easy to achieve the emission standard of less than 20mg/m³, 10mg/m³, even 5mg/m³.

4. Thin and soft, easy to clean

The thickness of the woven fiberglass is less than 0.8mm according to different weight of fabric. This is only 1/3 of the needle felt filter material. It is woven with texturized yarn and has a soft texture. The glass fiber cloth shakes in a serpentine shape during dust cleaning, and the dust is easy to peel off; the pressure of dust removal is small, and the number of times of dust removal is small, which effectively reduces the consumption of compressed air, reduces maintenance, and saves operating costs.

5. Oxidation and corrosion resistance

Fiberglass filter cloth will not be oxidized by oxygen or nitride, so there is no need to consider the problem of high and low oxygen content in the dust collector. The woven glass cloth has outstanding corrosion resistance, and after the filter material is impregnated with PTFE, the PTFE will form a dense protective film on the surface of glass fiber cloth, so the fiberglass cloth is less eroded during operation.

6. Excellent folding resistance

The base material of woven fiberglass filter fabric is woven with glass yarns, and after scientific chemical post-treatment, the folding resistance is several times higher than that of ordinary filter material, and it can withstand long-term shrinkage and expansion without causing damage to the filter material, ensuring the service life of the filter material.

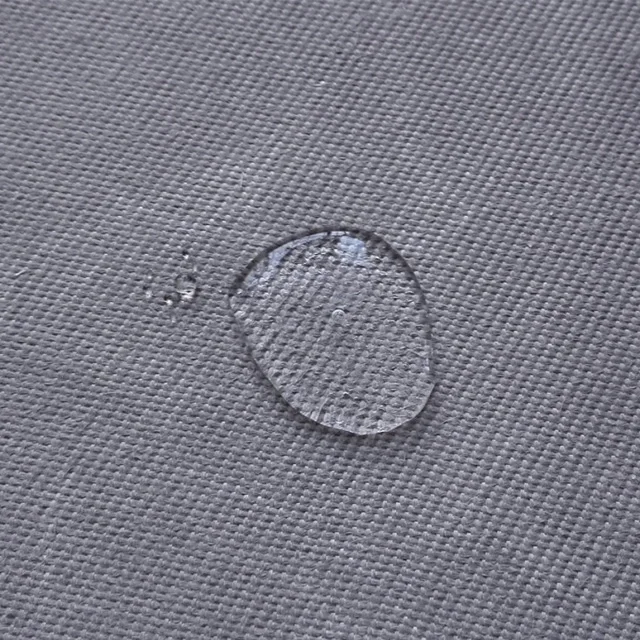

7. Water and oil repellent, suitable for working conditions with high moisture content

Glass fiber filter cloth has very good hydrolysis resistance. The base material has been treated with water and oil repellent technology. After application testing, the waterproof level is not less than 4.5, which eliminates the adsorption of water by the filter material and effectively reduces the hardening phenomenon after condensation.

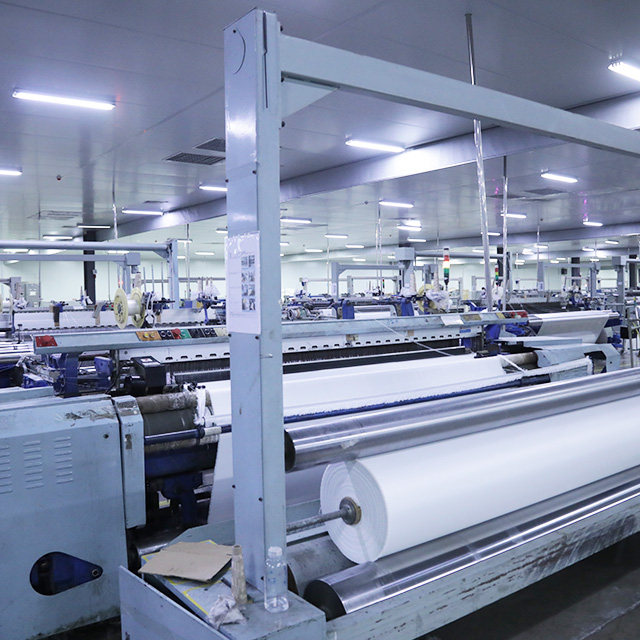

Manufacturing Roll goods at Hongyuan Envirotech

With experienced production team and high-tech machinery, Hongyuan Envirotech produce roll goods made of fiberglass and chemical fibers. More than 20 years production experience means we make can produce quality materials to meet market needs. Each fiber features specific properties that make the filter medium uniquely suited to its field of application. Filter media can be specially developed according to the needs of customers and different application conditions.

Filter Media Roll goods for Dust filtration

• Fiberglass fabric with and without e-PTFE membrane

• Needle felt with and without e-PTEF membrane

• Material weight from 250g/m2 to 1000g/m2

• Roll length from 50m to 300m

• Shortest delivery time

• Customized and developed products as customer’s request

FAQ:

Q1. What is the packing way for woven fiberglass fabric?
A: Standard export packing with plastic bag, carton and pallet.

Q2. What’s the MOQ for each type?
A: No problem to supply small quantity like 100lm or 50lm because we have stock or regular order for regular types.

Q3. Is it possible to get free sample?
A: Yes. Free sample can be provided by us.

Q4. What about the delivery time?
A: For regular order, within 4 weeks. It depends on the items and the quantity of the order.

Q5. Can you special customized products?
A: Yes, we can design and produce according customer’s request or sample.
